상자 일반 스크린 인쇄기

Crate plain screen printing machine is different from common screen printing machine, it is designed for some high products, the max. printing height is 400 mm. Common screen printer can print on small and short products, something like plastic box can not be printed. This screen printer can do it. Pneumatic power  is more suitable for small screen printer, this pneumatic screen printer use high precision guide shaft to control scraper and screen moving.

S-400PC  Crate plain screen printing machine  //Usage and feature

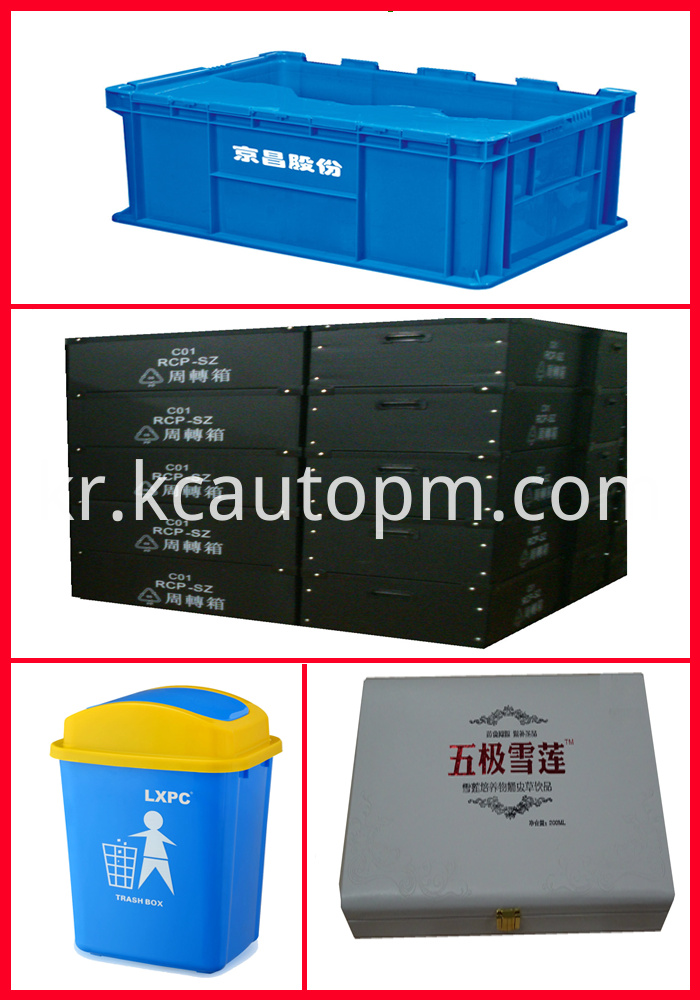

• Design for higher crate , Suitable for all types of plastic box printing
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen.

S-400PC Crate plain screen printing Machine //Parameters

• Max printing thickness: 400 mm;
• Air consumption: 110Litre/Min;
• Dimension of working table: 300×500mm;
• Max printing areas: 280×450mm;
• Max printing speed: 900Pcs/H;
• Max frame dimension: 450×740mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:160mm;
• Stroke of Squeegee: 400mm
• Package dimension: 0.93X0.92X1.65M
• Gross weight: 160Kg;

S-400PC Crate Flat screen printing Machine  //Advantage

• Design for crate, suitable for printing all types of plastics box;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
