진공 테이블이있는 일반 스크린 프린터

Printing Transmission adpots Rodless Cylinder drive,hight prcision linear lead rail and synchronous belt drive,movement sensitive,speed equality and can be adjusted.Flat screen printing machine is widely used to print high Precision PCB , LCD LENS , Conductive film circuit , PMMA ect , all high precision printing products.

S-2838PV  Flat screen printing machine with vacuum table //Guide

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

S-2838PV  Flat screen printing machine with vacuum table//Application

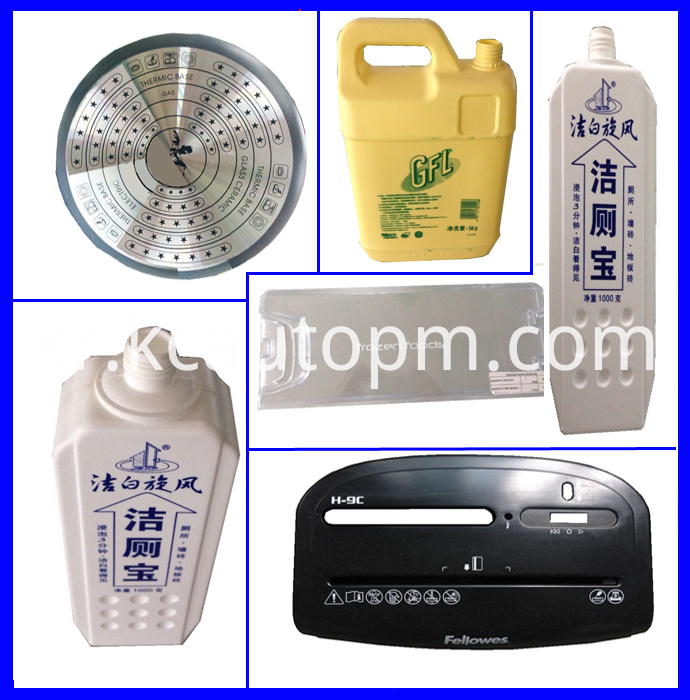

The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case

S-2838PV Flat screen printing Machine with vacuum table//Parameters

• Max printing thickness: 260 mm;
• Air consumption: 80Litre/Min;
• Dimension of working table: 300×500mm;
• Max printing areas: 280×380mm;
• Max printing speed: 1200Pcs/H;
• Max frame dimension: 450×740mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:160mm;
• Stroke of Squeegee: 400mm

S-2838PV Flat screen printing Machine with vacuum table //Advantage

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
