유명한 브랜드 일반 스크린 인쇄기
단가: USD 7750 / Set/Sets
Min.Order |
단가 |
1 Set/Sets |
USD 7750 / Set/Sets |
지불 유형: L/C,T/T
Terms of Trade: FOB,CIF
최소 주문량: 1
단가: USD
모형:S-900PV
인쇄판의 종류: 스크린 프린터
해당 산업: 식음료 공장, 에너지 및 광업, 기계 수리점, 건설 작업, 인쇄소
보증 제외 서비스: 비디오 기술 지원, 온라인 지원, 예비 부품, 현장 유지 보수 및 수리 서비스
현지 서비스 제공처 (해외 서비스 아울렛이있는 국가): 이탈리아, 파키스탄, 케냐, 남아프리카, 카자흐스탄, 대한민국, 멕시코, 독일
쇼룸 위치 (해외 샘플 룸이있는 국가): 터키, 페루, 케냐, 남아프리카, 카자흐스탄, 아르헨티나, 사우디 아라비아
상태: 새로운
원산지: 중국
자동화 정도: 반자동
색상 번호 및 표면 번호 인쇄: 단색
보증 기간: 일년
핵심 판매 포인트: 높은 정밀도, 긴 서비스 수명
마케팅 유형: 일반 제품
기계적 테스트 보고서: 제공
비디오 공장 검사: 제공
핵심 부품 보증 기간: 일년
핵심 구성 요소: 펌프, 모터
Type: Vertical Screen Printing Machine
Style: Screen-Process Printing Press
Structure: Platen Press
Color & Page: Single-Colour Printing Press
Application: Packaging Printing
Objects To Be Printed: Paper
포장: 나무 케이스
생산력: 20 sets/month
상표: KC
수송: Ocean,Land,Air
원산지: Dongguan
지원에 대한 지원: 20 sets/month
인증 : CE Certificate
HS 코드: 8443192190
포트: Shenzhen,Guangzhou,Hongkong
S-900PV 평면 스크린 인쇄 진공 테이블이있는 기계 //
사용 및 문자
목록
세부
데이터
-
Fit printing soft and thin products such as paper, plastics film etc;
-
With vacuum working table ensure adsorbing object when printing;
-
Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
-
Also widely used in Glass plate, Machine panel screen printing;
-
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
-

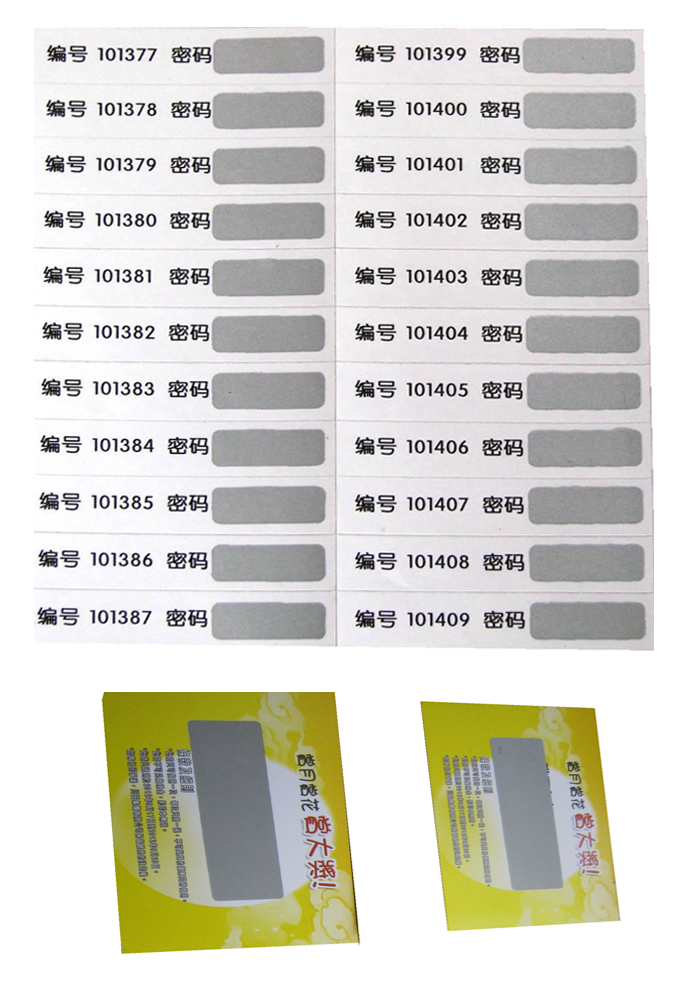

Suitable for printing sheet-fed adhesiving sticker;
-
Suitable for printing water transfer label and heat transfer label through diffrent process;
-
Max Printing area: 600*900mm;
-

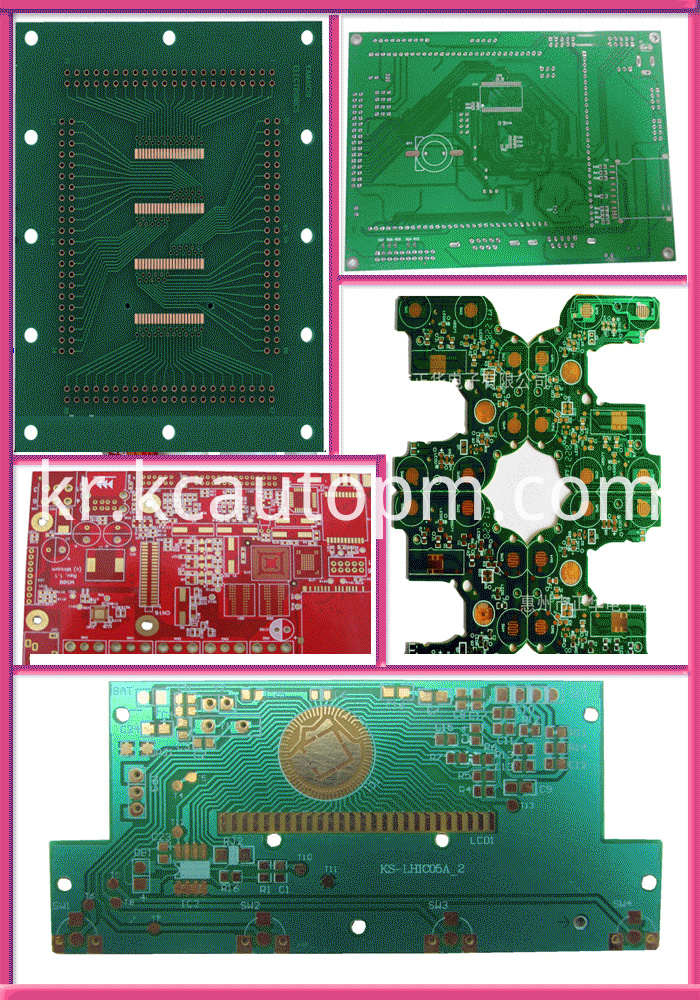

High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.
S-900PV Flat screen printing machine with vacuum table //Application
-
Widely used in Glass printing field;
-
With UV curing machine, Can finish many UV special printing process for UV package industry.
-
Suitable for printing Mobile windows ;
-
Suitable for printing water transfer label and heat transfer label through diffrent process;
-
The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit
S-900PV Flat screen printing Machine with vacuum table//Parameters
-
Printing high:50mm;
-
Air :45Liter/Min;
-
Working tavble dimension:700×1000mm;
-
Max Frame dimension: 950×1200mm;
-
Max printing area:600×900mm;
-
Max printing speed:800PCS/h ;
-
Max Stroke of up-and-down frame:200mm;
-
Max stroke of Squeegee:800mm;
-
Squeegee motor wattage: 200W;
-
Table Precision: +-0.03mm.
-
Package dimension: 1.41×1.26×1.83m
-
Gross weight: 389kg;
S-900PV Flat screen printing Machine with vacuum table //Advantage
-
High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
|
