스크린 인쇄기를 자동으로 병에 넣습니다

Automatic screen printing machine;

• Designed specifically for the printing of hollow plastic bottle design independent feeder, efficient printing, and other containers can be converted mold printing, simple operation, save a lot of manpower to provide complete solutions for the plant productivity is low.
• Market fully automatic screen printing machine in bottles all the connection type screen printing system, bottle finished the first color, into the second printing unit to the second color screen printing. Tolerance in the length direction, the type of screen printing machine can do a 5-color to six colors.

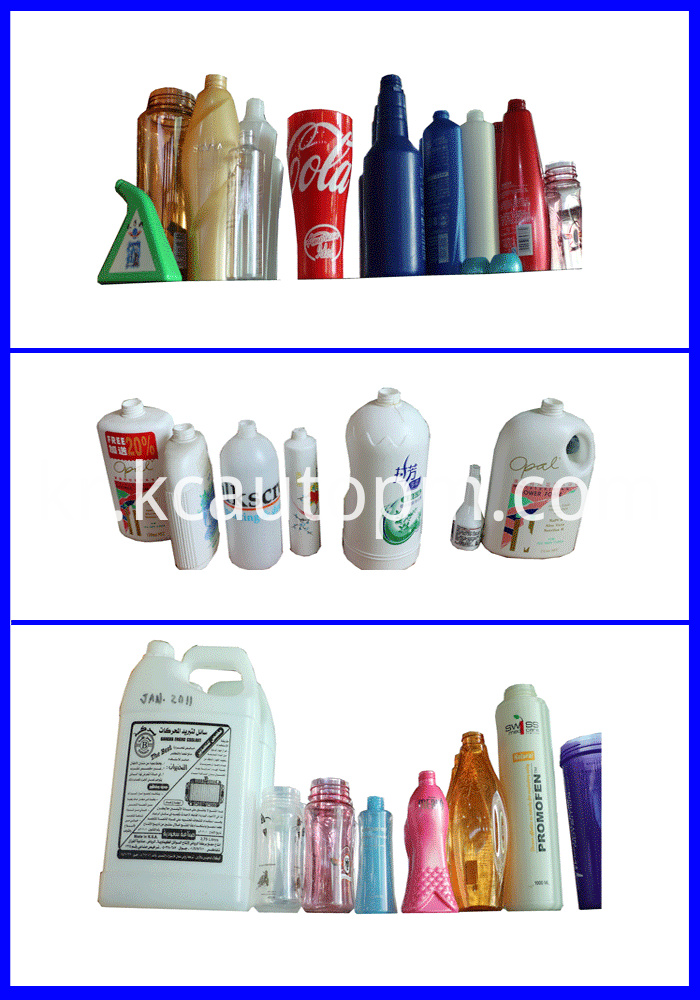

• Cosmetics, pharmaceuticals and food industry within the round, flat, square container on the surface of the printing of various patterns, such as cosmetic bottles, detergent bottles, beverage bottles, milk bottles, space cups, filters, jars and other high-speed screen printing

• Plastic packaging, oil industry, cosmetics industry, commodity manufacturing industries;
• Automotive filters, cylindrical products with positioning points;
• Various hollow containers, some hoses, some open type containers;
• Some have smooth sides of the cap.

Technical parameter

• Round-object Max printing stroke: 300mm;
• Oval-object Max Printing stroke: 120mm;
• Round-object Max Printing speed: 4000pc/h;
• Oval-object Max Printing speed: 4500pc/h;
• Work piece size(Round): Diameter:25-100mm;Length:60-300mm;
• Work piece size( Oval): Width:25-260mm, Length:60-300mm;
• Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
• UV Lamp wattage: 4KW/pc;
• UV Exhaust fan wattage: 0.2KW;
• Exhaust rate: 11.6 m3/min;
• Motor Wattage: 0.75KW;
• Reduction gearbox : 1:7.5;
• Feeding motor wattage : 0.75KW;
• Fixture motor wattage : 0.5KW;
• Vacuum Pressure : 500 mm/Ag;
• Flame gas: Liquefied Petroleum gas( LPG);
• Air : 6 Bar;
• Air rate of flow : 1500Lit/M.
