T-Slot 테이블이있는 저렴한 플랫 탁상 스크린 프린터
단가: USD 1350 / Bag/Bags
Min.Order |
단가 |
1 Bag/Bags |
USD 1350 / Bag/Bags |
지불 유형: L/C,T/T
Terms of Trade: FOB,CIF
최소 주문량: 1
단가: USD
모형:ST-2030PT
Type of printing plate: Screen Printer
Applicable industry: Home Use, Energy &Amp; Mining, Construction Works, Advertising Company, Printing Shops
Out-of-warranty service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where to provide local services (in which countries are there overseas service outlets): Indonesia, Japan, Pakistan, Malaysia, India, Australia, Mexico, Morocco
Showroom location (in which countries are there sample rooms overseas): Spain, Chile, Thailand, Uae, Morocco, Colombia, Kenya, Algeria
status: New
place of origin: China
use: Paper Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Long Service Life, High-Accuracy, High Productivity
Marketing type: Hot Product 2019, Ordinary Product
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Pump
Type: Vertical Screen Printing Machine
Style: Screen-process Printing Press
Structure: Platen Press
Color & Page: Single-Colour Printing Press
Application: Packaging Printing
Objects To Be Printed: Paper
포장: 나무 케이스
생산력: 100 Sets/month
상표: KC
수송: Ocean
원산지: Dongguan
지원에 대한 지원: 20 Sets/month
인증 : CE Certificate
포트: shenzhen,guangzhou,Hongkong
견본
Desktop Flat Screen 인쇄기의 감소 된 버전은 시장에 대한 소량의 투자로 스크린 인쇄 처리 분야의 사용자의 요구를 충족하도록 설계되었습니다. 평면 스크린 인쇄기의 모든 기능이 있지만 가격은 매우 낮으며 거의 모든 플랫 제품을 인쇄 할 수 있습니다.
섀시가 없으며 테이블에서 작동 할 수 있습니다. 공압 제어를 사용하고 공기 압축기를 추가로 구매해야합니다. 흡입 테이블과 T- 슬롯 테이블로 설치할 수도 있습니다. 흡입 테이블은 용지 및 필름 인쇄에 사용되며, 그루브 테이블은 3 차원 주입 성형 제품을 인쇄하는 데 적합합니다.
정밀한면에서 인쇄 영역은 작고 정밀도는 대부분의 제품에 완전히 적합하며 선형 가이드 레일을 사용하여 화면을 위아래로 제어하는 것으로 간주되며 기본적으로 색상 등록 요구 사항을 충족 할 수 있습니다.
ST-2030PT Flat screen printing machine with vacuum table //Guide
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
ST-2030PT Flat screen printing machine with vacuum table //Application

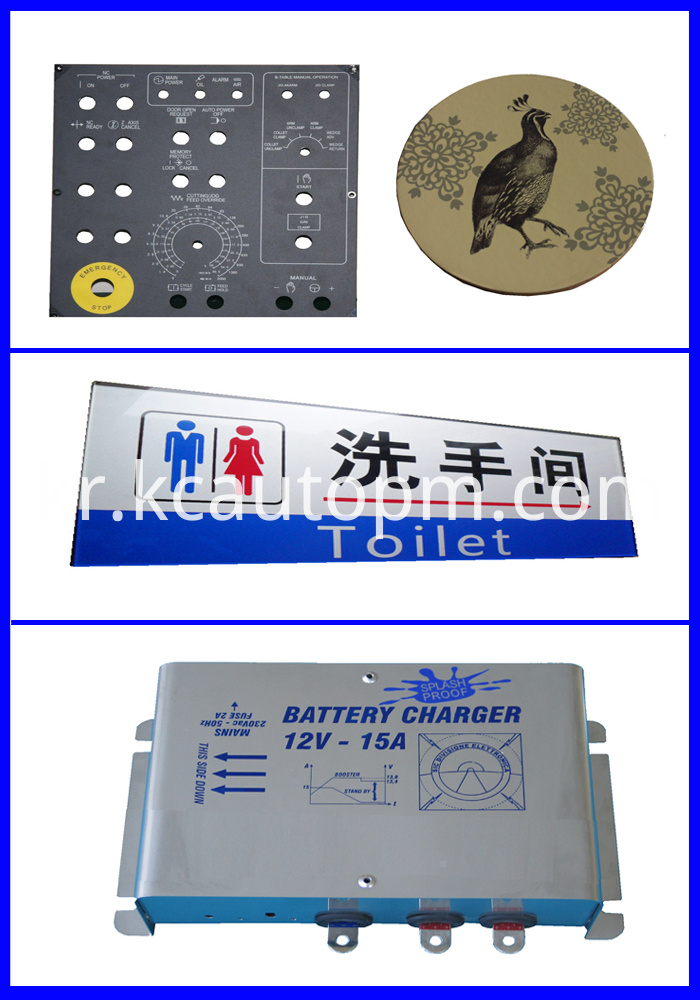

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case
ST-2030PT Flat screen printing Machine with vacuum table//Parameters
-
Max printing thickness: 150 mm;
-
Air consumption: 60Litre/Min;
-
Dimension of working table: 200×300mm;
-
Max printing areas: 190×290mm;
-
Max printing speed: 1000Pcs/H;
-
Max frame dimension: 320×470mm;
-
Compress air: 5-7 bar;
-
Stroke of cylinder up and down:125mm;
-
Stroke of Squeegee: 300mm;
-
Table Precision: 0.05mm;
-
Rang adjustment of table: 10mm
ST-2030PT Flat screen printing Machine with vacuum table //Advantage
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
|
