혈액 컵 병 튜브 실린더 스크린 인쇄기

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

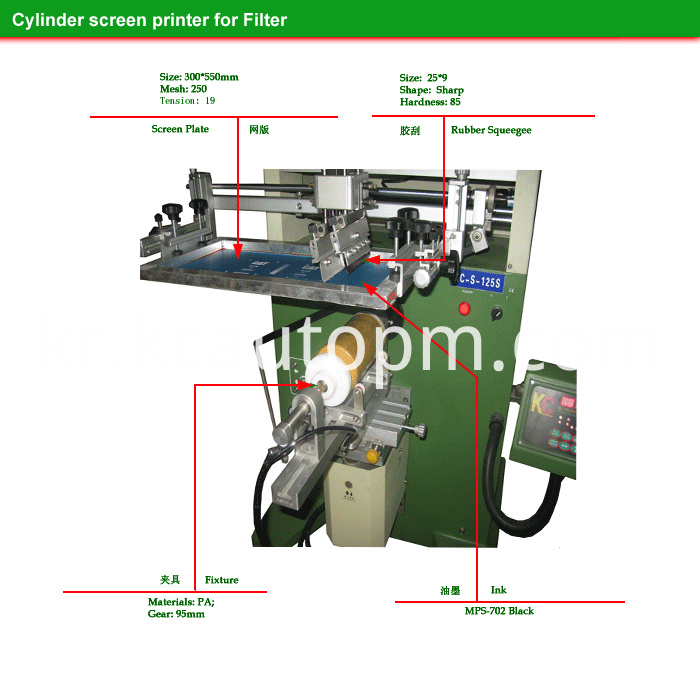

S-125S  Multi-function screen printing Machine //Parameters

• Gear line width:14mm, Length: 540mm;
• Maximum printing thickness: 300 MM;
• Air consumption: 80 Liter/Min;
• The diameter of maximum printing workpiece: Φ125MM ;
• The arc of maximum printing workpiece: 380MM;
• The maximum printing speed: 1300Pc/H;
• Weight: 187kg.
• Max Frame dimension: 550×400mm;
• Maximum Plain printing area:300×400mm;
• Max diameter of workpiece: Φ150MM
• Works supply:110V-220V Power supply;5-7Barcompress air;
• Outer Dimension:0.87m×0.95m×1.33m;
• Net weight: 140KG.
• Dimension:0.9m×0.92m×1.36m;
• Gross weight: 175KG;
• CBM: 1.12608
• H.S.CODE:8443198000
• Certificate:CE

S-125S Multi-function screen printing Machine//Advantage

• Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
• Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
• High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
• High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
• Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
• Microcomputer control program operations, set up a variety of modes;
• Four counts digital LED count, high degree of automation;
• Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
• Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
