S-20B4 Balloon screen printing machine//Usage and characters

• Balloon silk screen designed specifically for screen printing machine,

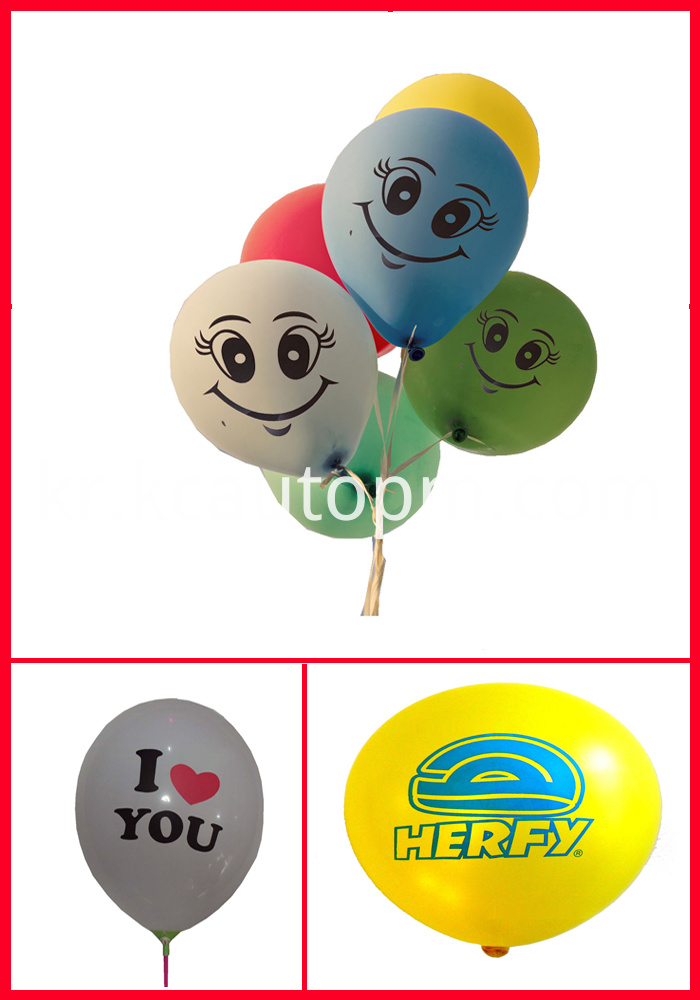

• Suitable for a variety of flexible inflatable spherical objects.
• The structural design using the up and down movement of the screen type, conducive removed and placed;
• Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
• Semi-automatic operation, the operator interface can be used;
• Operation when the first balloon inflated to a specified diameter, placed in the center hole of the table, the screen will be under pressure to carry out the silk screen.

S-20B4  Balloon screen printing Machine //Parameters

• Max Printing speed: 900 Pcs/H;
• Max Printing area: 150*150(mm;
• Thickness of substrate:200(mm)
• Table size:180*180(mm)
• Max frame size:360*300(mm
• Power :220V/50HZ
• Outer size:600*900*1200(mm)
• Net weight:90(kg).
• Works supply: 110V-220V Power supply;
• 5-7 Bar compress air;
• Package parameters
• Package dimension:1070mm×560mm×1350mm
• Gross weight: 110 kg
• CBM: 0.9129
• H.S.CODE: 8443192190
• Certificate: CE

S-20B4 Balloon screen printing Machine//Advantage

• Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
• Screen lift, precision and smooth running.
• Automatically the line scraping oil back to the for mimeographed head movements function.
• Printing stroke and speed can be flexibly adjusted.
• Automatically balance the scraper technology.
• Before and after the screen frame and turn the trim function.
• Cast aluminum alloy beams, pneumatic lifting mode.
• Foot printing function;
• Scraper can set as stopping front or Back
